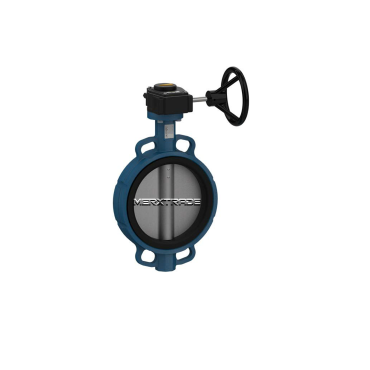

Butterfly valve wafer Gearbox Ductile iron/Stainless steel/EPDM PN10/16-ANSI150-JIS5K/10K
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
EPDM
| Model: | Wafer Series M52 | Material body: | Ductile iron JS1030 GGG40 |
| Connection: | PN10/16/ANSI150#/JIS5-10K | Material disc: | St.St. ASTM A351 CF8M |
| Pressure: | 16 bar, check tech data PDF | Material seat: | EPDM |
| Temperature: | -23°C-120°C | Operation: | Gearbox |
| Test standard: | EN 12266-1 | Brand: | MerxTrade Premium |
| Cartridge seat design |
| Approvals : WRAS, DVGW, CE/PED 97/23/EC category III module H (inquire at Merxtrade BV) |
| Marine body casting Type Approvals for: DNV/GL & Lloyd's register of shipping |
Application: Horticulture, agriculture, greenhouse construction, boiler houses, shipbuilding, industry, heating, pump systems, engine rooms, marine,
Datasheet (PDF)
| SKU | MXT-M52G010000 |
|---|
| Body material | Ductile iron GGG40. |
|---|---|
| Disc / Ball / Wedge | Stainless steel-CF8M-316 |
| Seat | EPDM |
